||GM8135S, Built-in ARM926 @Max. 440MHz High Speed Video Coprocessor
||GC2033 CMOS Sensor
||166° Wide-Angle Camera Lens
||Support automatic white balance, automatic gain control, automatic backlight compensation
|Signal to noise ratio
||0.8Lux/F1.4(Color mode),0.3Lux/F1.4(Black and white mode)
||Dual filter automatic switching, 6pcs 850nmΦ28Mil High power infrared light, Night vision 8 meters
|Video Resolution/frames per seconds
|When to Record Video
||1. Motion detection triggered
2. Push doorbell button
3. Preview from APP
||18650 Li Battery / 2600mAH *2pcs (Optional)
|Battery discharge time
||1 months (30 times wake up per day)
||Support (802.11 b/g/n)
||Support cloud storage (For now, the hardware doesn’t support TF card storage)
||DC 5V / 1A
|Operating temperature (°C)
||1. Push doorbell button to wakes up
2.wake up by PIR motion detection
3. Wake up from APP
||When you have a visitor, you can see the view, talk with visitor, and record a short video. Without opening the door, you can know what is happening outside the house.
ultra-low power consumption
remote active wake-up
Support multiple accounts at the same time
Video Playback Function
When friends visit you and you are not at home ,you don’t miss it with this
smart wifi video doorbell .you can playback and watch it.
IR Night Vision
Day or night, rain or shine, it allows you to take photography and record
videos at any time.
Ultra-low Power Consumption
Lower power consumption and Ultra-long Standby Time -This wifi doorbell adopt
2 piece 18650 batteries,and Adopt ultra low power technology.
1080P Video Record
1080p High Definition Shows Every Little Detail,And Is Provided With
Enhanced Digital Noise Reduction
WIFI Connection App Control

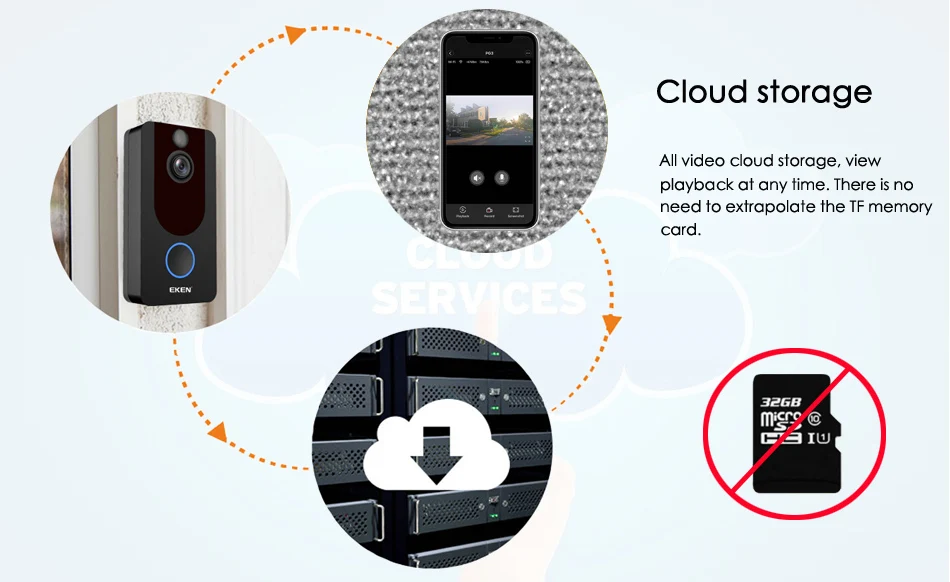

Free 7 days cloud storage, Monitoring data is send to the cloud in real time,
without fear of theft , without fear of being destroyed.
PIR Motion Detection
Smart PIR motion detection – Whenever any motion is detected, camera sends
alert to your mobile phone, and record the motion video automatically.
WIFI Connection App Control
Support smartphone and tablet PC for both Android and IOS system
(free to download and use)
Two-Way Audio with Noise Cancellation – Allows you to talk to your visitors
wherever you are. And you can watch real-time videos on cellphone.Never
miss your package and any visitors.
Different Type of Chime
There is EU, US, AU and UK plug, four type of chime for different country. No
mater where are you from, you can choose the plug you need.
300Mbps Wifi Repeater
Perfect to extend your Wi-Fi network, Upto 300Mbps transmission rate,
Enhance wifi signal near the doorbell.
- 1.Two 18650 specification batteries.
- 2.Million HD pixels collocated with 166 degree wide-angle lens
- 3.Support mobile phone remote fast wake up device within 3 second.
- 4.2.4G Wi-Fi connection
- 5.High quality two-way talk with noise cancellation
- 6.Support PIR motion detection, when someone hovers at the door, immediately
- alerts push notifications to the mobile phone.
- 7.Day and night mode automatic switching, whether day or night, the image is
- clearly visible, for your safety and family security.
Q: Why the doorbell cant turn on with the batteries?
A: You need to take off the sticker on the batteries and it will work.
Q: If wifi signal is too weak near the door, How can I solve the signal problem?
A: You shall order with the wifi extenter, It will hope you extend the wifi signal distance.
Q:I order with battery, why I can’t turn on the camera?
A:All battery sent with a Insulating film, you shall move out it before you use.
Q:Why my new battery work short time?
A:For airline require: all rechargable battery must keep 0-60% power, if not, parcels can’t be shipped by air post.
So some battery is empty or less power. please charge battery full at the first time you use.
Q:Is the night mode on auto at night?
A:Yes, It build in Photosensitive chip, Night mode will on auto at night.
Q:My house is a villa, I don’t want the camera doorbell call me always. How can I do?
A:In the setting, you can Turn off the PIR detection. Then it will not call you if no body click the doorbell button.
Q: Sometimes, the camera will disconnection in my phone, how can I do?
A: Transfer wifi connect to 4G, or transfer 4G to wifi. and then restart the XSH app. If problem can’t be solve, then restart the doorbell.
Q: Is every doorbell check before shipping?
A: Yes, Before we sent, all doorbell tested wifi connect, chime connect, video quality, sounds quality, Night mode, motion detection ….etc.
Q: Is the doorbell support Intercom?
A: Yes, it support 2CH Intercom. No matter where are you, people near the door can speak with you if your phone has wifi or 4G signal.
Q: Is the doorbell support 5GHz wifi or only 2.4G.
A: It support only 2.4G.
Q: Is one Doorbell support 2 or more chime?
A: Yes, One Doorbell support connect multi chime.
Q: If the battery power run out, How can I do?
A: you can use the charger with micro USB 5V power.
